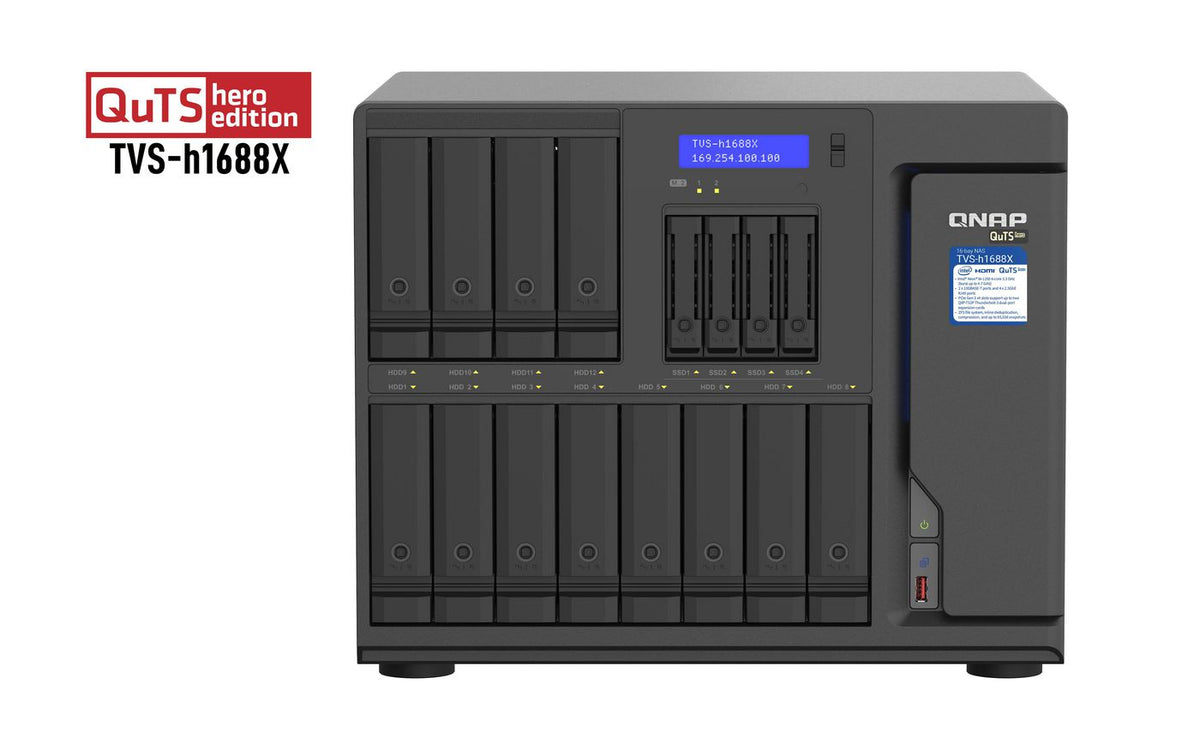

QNAP 12 x 3.5", 4 x 2.5", Intel Xeon W-1250, 32GB ECC UDIMM DDR4, 5GB Flash, LAN, LCD, 550W, 100 - 240V, 303.84 x 369.89 x 319.8 mm, 13.41 kg

The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1688X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1688X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivity
You can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1688X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1688X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS.

Dual 10GbE connectivity optimizes high-speed data transfer
The TVS-h1688X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center, virtualization applications, and high-speed backup and recovery. The TVS-h1688X is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.

Direct 4K HDMI output
The TVS-h1688X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1688X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately).

Set SSD caching to boost IOPS with M.2 NVMe SSD
The TVS-h1688X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1688X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

Set SSD caching to boost IOPS with M.2 NVMe SSD
The TVS-h1688X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1688X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

Data integrity is key
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
